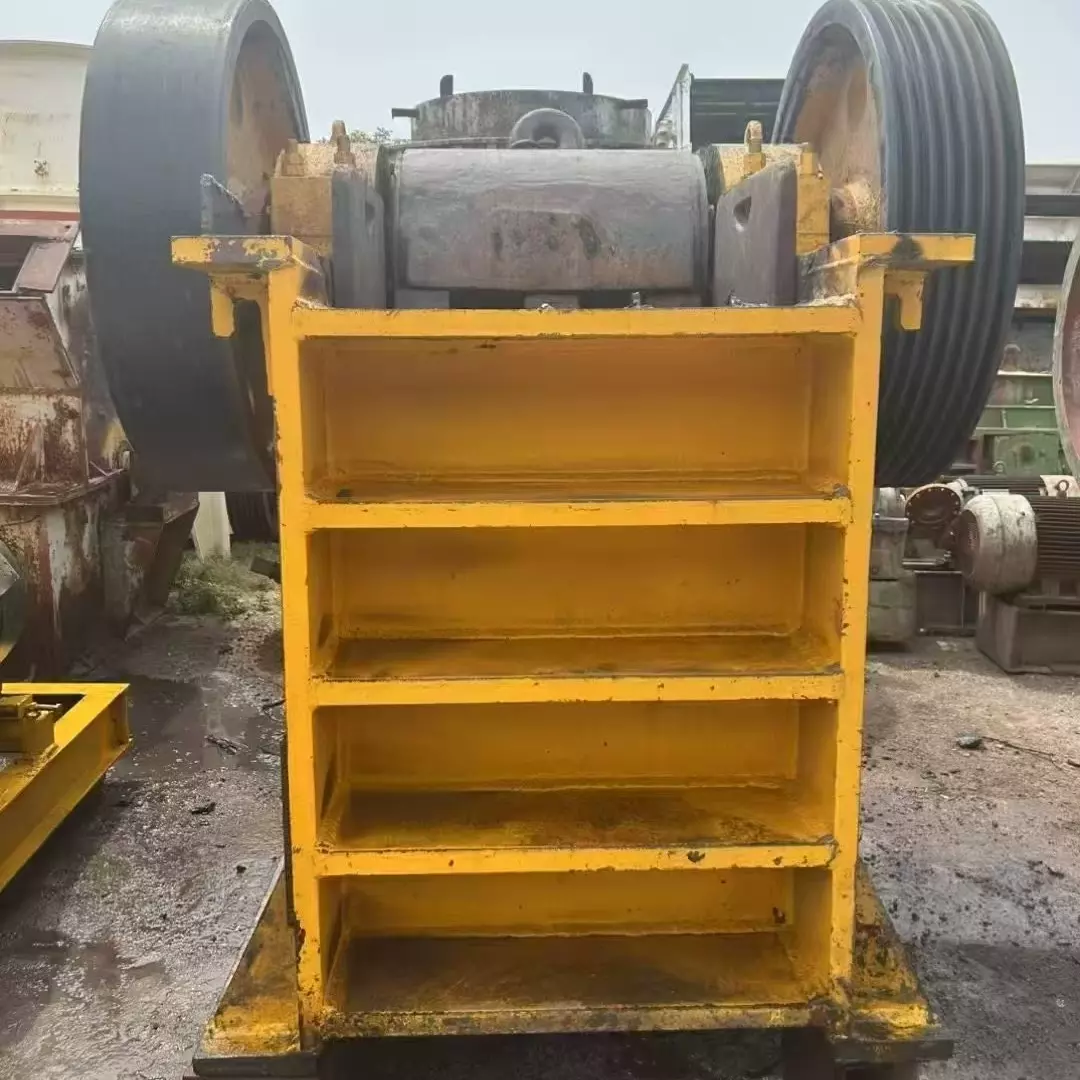

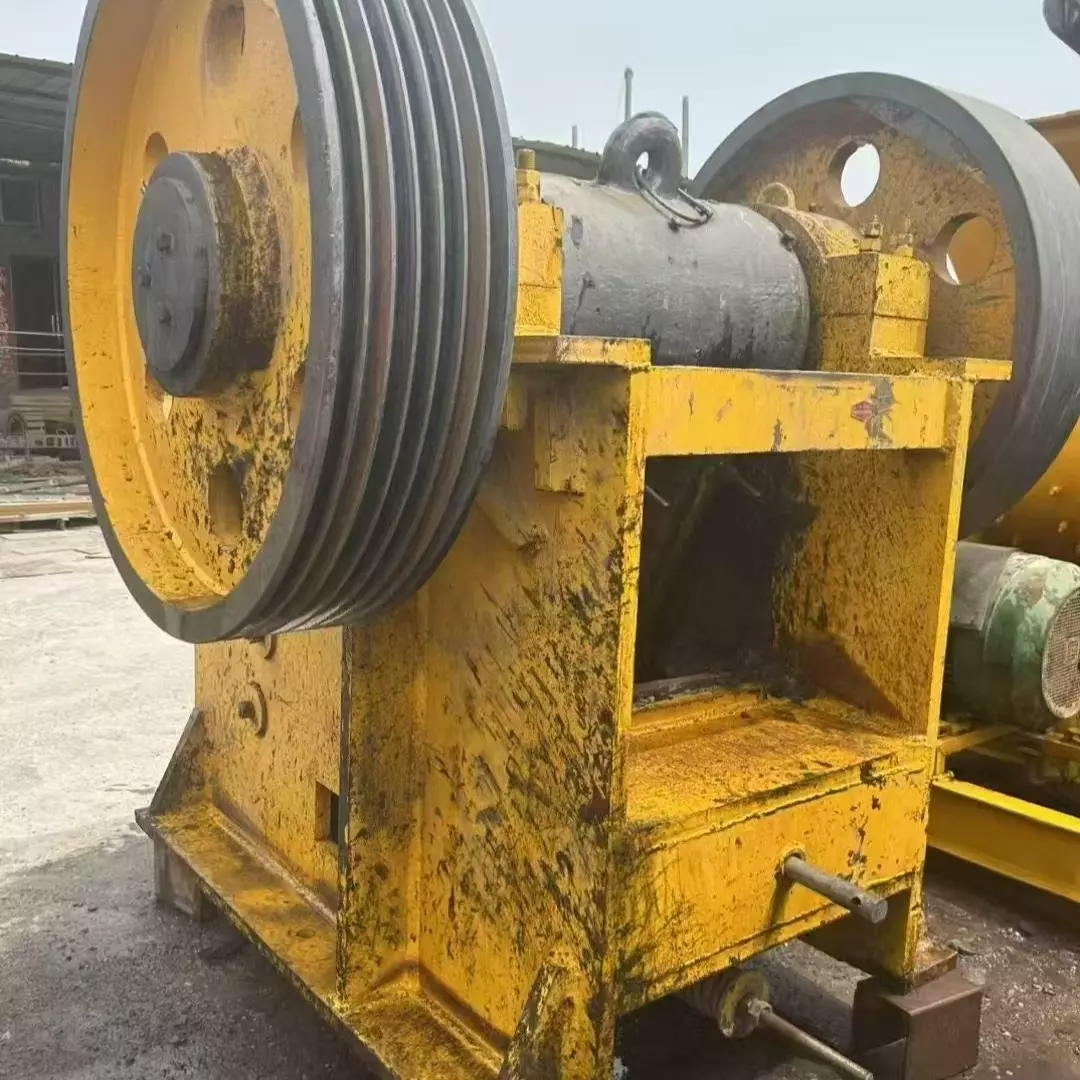

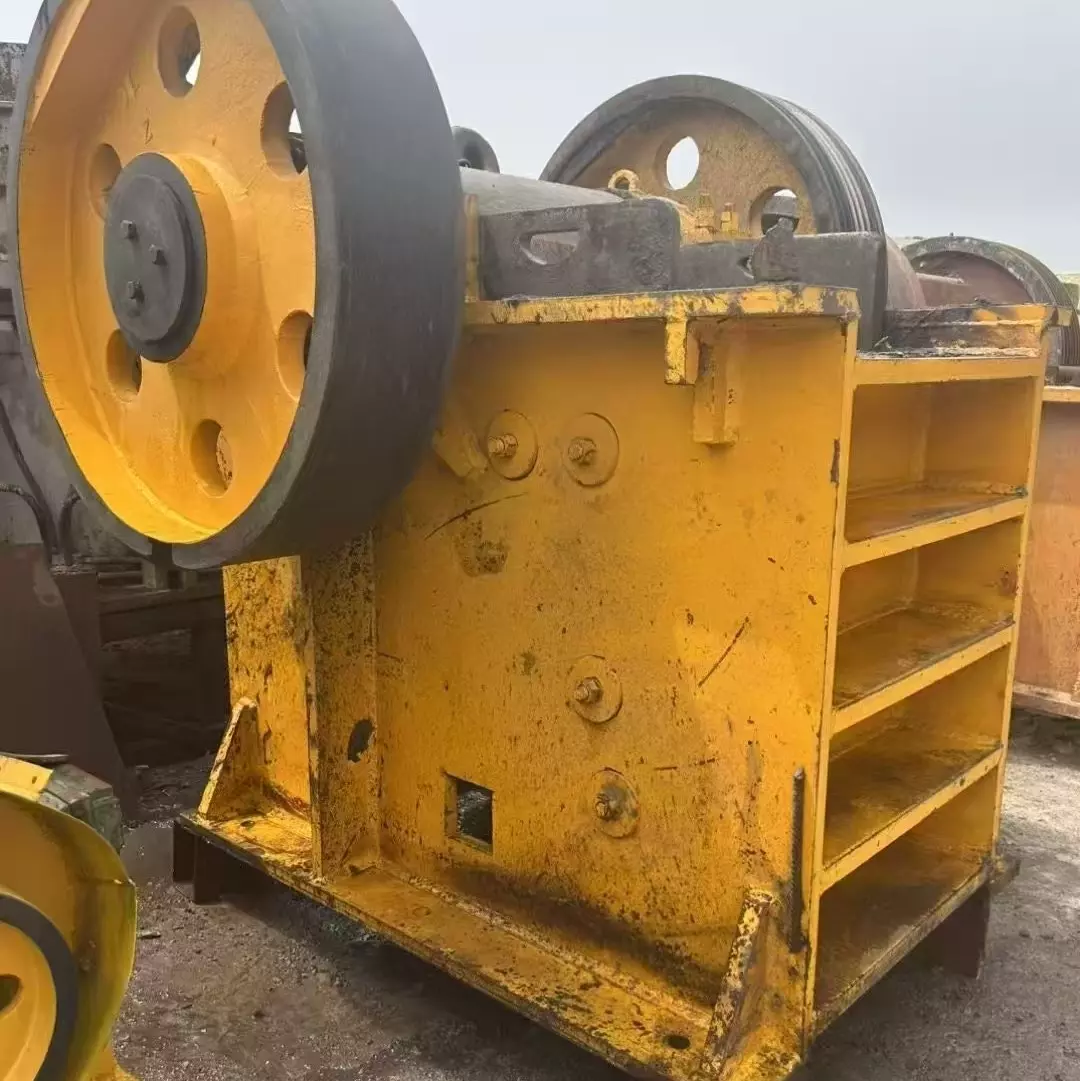

570 Jaw Crusher

MOQ: 100 KG

Delivery time: 10 Day

Hanlinsky SJ Series jaw crushers are mainly used for coarse crushing and medium crushing for mining, building materials and infrastructure construction. In most cases, they are worked as primary crushers for making the first step of size reduction and prepare the feed for the secondary crushers in a crushing and screening process.

Previous: No More

Next: Mobile 35 Jaw Crusher

Leave a Message

If you have more information you would like to know, you can leave a message to us through the form below, and our staff will contact you as soon as possible

Name *

E-mail *

Phone

Company

Message *

Products

Generator

Engine

Crusher

Latest News

Agriculture Uses of Generators

Benefits of Portable Diesel-Powered Generators

3 Reasons Why a Used Backup Generator is Worth Buying

Generator Excitation Control Systems and Methods

Does Diesel Go Bad? Diesel Shelf Life Guide

product

Mobile 35 Jaw Crusher

1250 Vertical Shaft Sand Making Machine

1010 Hydraulic Box-type Sand Making Machine

750-1060 Jaw Crusher

250-1200 Fine Jaw Crusher

Model	Feed opening (mm)	Max. Feed (mm)	Capacity (t/h)	C. Side Setting (mm)	Motor Power (kW)	Overall Dimensions (L × W × H) (mm)	Weight (kg)
SJ600	400 x 600	340	30 - 100	40 - 100	30	1 585 × 1 740 × 1 586	7,100
SJ750	500 x 750	425	60 - 180	50 - 120	55	1 955 × 1 890 × 1 920	11,800
SJ900	600 x 900	500	80 - 300	60 - 160	75	2 246 × 2 180 × 2 371	15,000
SJ1100	750 x 1060	630	120 - 410	80 - 200	110	2 994 × 2 409 × 2 831	26,000
SJ1200	900 x 1200	750	250 - 570	100 - 220	132	3 340 × 2 756 × 3 260	43,000
SJ1500	1200 x 1500	1,020	450 - 920	160 - 320	220	4 610 × 3 348 × 3 880	82,000
SJ1800	1500 x 1800	1,200	600 - 1200	220 - 350	355	4 700 × 3 830 × 4 695	125,000
SJ250X1000	250 x 1000	210	20 - 60	15 - 50	37	1 567 × 1 996 × 1 380	6,800
SJ250X1200	250 x 1200	210	35 - 80	15 - 50	37	1 612 × 2 226 × 1 430	7,500
SJ350X750	350 x 750	300	25 - 60	15 - 50	30	1 555 × 1 860 × 1 660	6,500
SJ350X1300	350 x 1300	300	40 - 140	20 - 90	75	1 820 × 2 335 x 1 663	11,000
